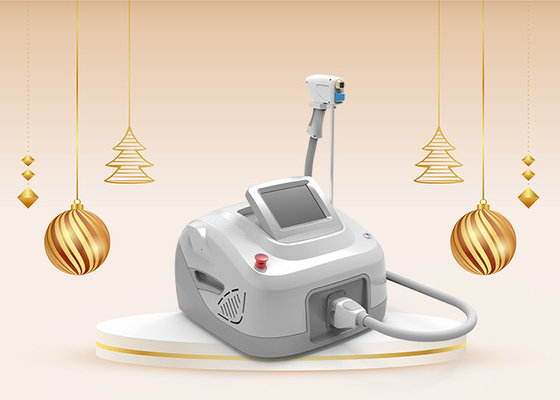

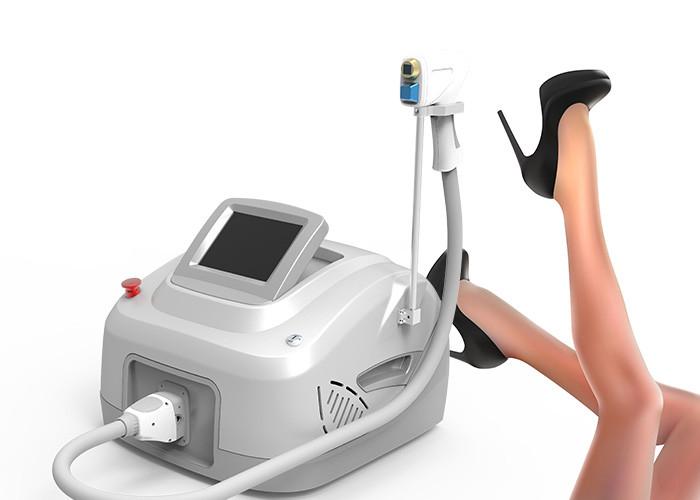

600w Professional Multiple Uses Diode 808 Machine For Whole Body

600w Professional Multiple Uses Diode 808 Machine For Whole Body
600w Professional Multiple Uses Diode 808 Machine For Whole Body

Large Image :  600w Professional Multiple Uses Diode 808 Machine For Whole Body

Product Details:
Place of Origin: China
Certification: FDA, iso,ce,13485
Model Number: diodelaser220018
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Alum wooden box
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30+1month
Detailed Product Description
Brand Name: LaserTell Name: Professional Multiple Uses Diode 808 Machine For Whole Body
Q-Switch: NO Key Words: Diode Laser Nose Arm Legs Body Hair Removal
Power: 600W/1500W/2000W Spot Size: 15*15mm
High Light:

600w diode 808 machine

,

multiple uses diode 808 machine

,

whole body 808nm diode laser machine



Strength:

Extreme long lifespan
In QCW mode, 200μs pulse width, it can shot more than 20G(20 million) times. This is 5~10 times longer compared with lasers from
Israel, Germany and USA, 20-30 times more than uppliers from China.

No working temperature limit
Temperature coefficient of the wavelength is 0.07nm/k(4 times than laser bar), that means it’s not sensitive to temperature,
highest working temperature can be 85℃.

24 hours non-stop working
Wide heat dissipation surface, can realize all around clock work with "contant temperature"

Few after sales concerns
No deionized water, no filters, no consumables, etc. No laser source burning concern
Technology

IPL
Diode Laser
LED
Light source features
Light source
Xenon lamp
Diode laser bars
LED chips
wavelength
Wide spectrum 610nm-900nm
Single wavelength 755/808nm/1064nm
Narrow spectrum 780-850nm
Light power
5-10kw
320-1000w
840w
Light emitting area shape
Columnar
Line
Surface
Pulse lifespan
10000-30000shots
8-30million shots
60-100 million shots
Operation
Operation mode
Stamp
Stamp/Repeat
Stamp/Repeat
Energy density
1-40j/cm2
Stamp:50-100cm2
Repeat:5-12J/cm2@10Hz
Stamp:50-100cm2
Repeat:5-12J/cm2@10Hz
Maintenance
Handle
Always need change light tube
Laser generator is easily damaged, need replace every 1 to 2 years
If normal use and regular maintenance, handle has the same lifespan as device
Filter
No need
Need often change filter and deionizer, if not, laser generator is easily damaged
No need
Cooling water
Drinking water
Special deionized water or coolant
Drinking water
Specification
Product Name
iMED_LED
Light source
LED
Light spectrum
NIR
Light power
800W
Pulse width
10-300ms
Energy density
1-100J/cm2
Frequency
1-10Hz
Skin type
I-VI
Operation mode
Stamp, Repeat
Spot size
15*15mm2
Cooling system
TEC Sapphire contact cooling/ Water cooling
Cooling temperature
15℃ - 10℃
Size
50*46*35cm
Net weight
25KG
What is LED hair removal?
600w Professional Multiple Uses Diode 808 Machine For Whole Body 0
LED technology advantage
LED hair removal technology
LED hair removal use high-power super-emitting LED (Planar LED) array (12 pieces of chip) as a light source, crystal guide pyramid
shaping and transmission of NIR beam, act on the subcutaneous, melanin in hair follicle absorb heat, to achieve hair removal
effect.
600w Professional Multiple Uses Diode 808 Machine For Whole Body 1
600w Professional Multiple Uses Diode 808 Machine For Whole Body 2
Long lifespan and high stability
Up to 100 million shots and 5 years’ expected service lifetime(less than 10% failure and 20% power attenuation), without any consumable. Stable performance, low malfunction rate, no downtime. Very easy maintenance and after sales services. Low running cost, but high return on investment.

Reasonable light wavelength and spectrum

iMED LED use near infrared light with wavelength 780~850nm, little absorbed by skin tissue and vascular etc., but mainly absorbed by melanin in follicle, so hair removal is highly effective. Light spectrum has width, so can apply to more skin colors including dark skin.

Reasonable light wavelength and spectrum

A Evenly rectangle spot with nice consistency, energy is uniform, no painful feeling during treatment. Surface array light source,lower max. local brightness, no harmful to human eyes though direct watch. B Planar light emitting area, uniform rectangular spot,and the light’s divergence angle is small to 15°, easily penetrate into skin, very deep penetration depth, deep hair follicle also can be treated.

Diode laser
LED
LED Advantages
Thermal damage
Light power
Similar
Thermal power
Similar
Chip size
1*10mm
7.5*7.5mm
Conclusion
Similar total thermal power, LED has bigger heat dissipation are and smaller heat flow density.
Heat transfer patch
Pass to the bottom and rear Average path is 1.5mm
Pass to the bottom Average path is just 0.2mm
Conclusion
LED has very short heat transfer path, lower thermal resistance and much higher efficiency of heat dissipation.
Mechanical damage
Stress
Rectangle, high length-width ratio. Under stress of thermal deformation and thermal fatigue, chips easily desoldering or broken in
pulsed working
Square, 1:1 length-width ratio. Extra thin chip and large soldering area firmly but low stress.
Conclusion
Because of chip structure, LED chip’s stress is smaller than diode laser
Optical damage
Light power
Similar
Light emitting area
Size 0.01*0.1mm High brightness, foreign body pollution can cause light-emitting surface burned
Size 5*5mm Brightness is just similar to normal LED lamp of flashlight, slight dust will not being ignited to burn the lighting
surface

Conclusion
Because of surface emitting, the brightness of LED light emitting area is much smaller than diode laser.
Chain damage

Not like diode laser, for LED chips, single area’s failure does not affect other emitting area
Before & After
600w Professional Multiple Uses Diode 808 Machine For Whole Body 3
