Product Details:
Payment & Shipping Terms:
|

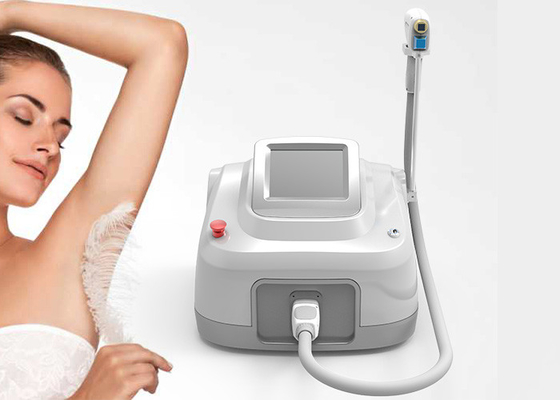

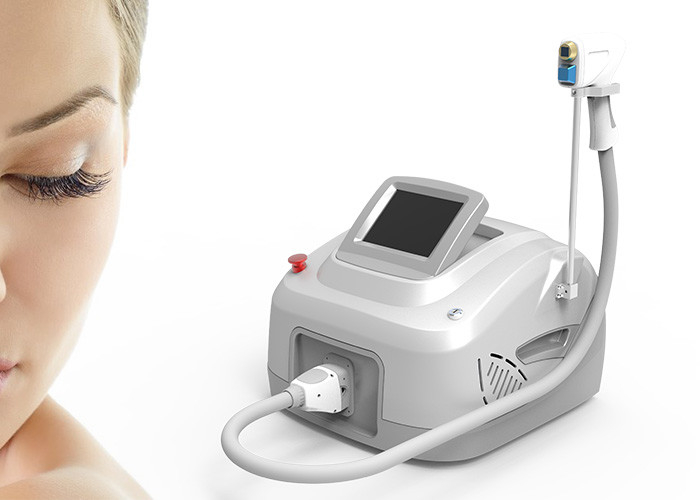

| Brand Name: | LaserTell | Name: | Mini 2000w Diode Machine 808 Laser Salon Spa Commercial Long Lifetime |
|---|---|---|---|
| Q-Switch: | NO | Key Words: | Diode Laser Nose Arm Legs Body Hair Removal |
| Power: | 600W/1500W/2000W | Spot Size: | 15*15mm |
| High Light: | 2000w diode machine 808 laser,mini diode machine 808 laser,salon 808 diode laser machine |
||
|
Technology
|
|
IPL
|
Diode Laser
|
LED
|
|
Light source features
|
Light source
|
Xenon lamp
|
Diode laser bars
|
LED chips
|
|
wavelength
|
Wide spectrum 610nm-900nm
|
Single wavelength 755/808nm/1064nm
|
Narrow spectrum 780-850nm
|
|
|
Light power
|
5-10kw
|
320-1000w
|
840w
|
|
|
Light emitting area shape
|
Columnar
|
Line
|
Surface
|
|
|
Pulse lifespan
|
10000-30000shots
|
8-30million shots
|
60-100 million shots
|
|
|
Operation
|
Operation mode
|
Stamp
|
Stamp/Repeat
|
Stamp/Repeat
|
|
Energy density
|
1-40j/cm2
|
Stamp:50-100cm2
Repeat:5-12J/cm2@10Hz |
Stamp:50-100cm2
Repeat:5-12J/cm2@10Hz |
|
|
Maintenance
|
Handle
|
Always need change light tube
|
Laser generator is easily damaged, need replace every 1 to 2 years
|
If normal use and regular maintenance, handle has the same lifespan as device
|
|
Filter
|
No need
|
Need often change filter and deionizer, if not, laser generator is easily damaged
|
No need
|
|
|
Cooling water
|
Drinking water
|
Special deionized water or coolant
|
Drinking water
|
|
Product Name
|
iMED_LED
|
|
Light source
|
LED
|
|
Light spectrum
|
NIR
|
|
Light power
|
800W
|
|
Pulse width
|
10-300ms
|
|
Energy density
|
1-100J/cm2
|
|
Frequency
|
1-10Hz
|
|
Skin type
|
I-VI
|
|
Operation mode
|
Stamp, Repeat
|
|
Spot size
|
15*15mm2
|
|
Cooling system
|
TEC Sapphire contact cooling/ Water cooling
|
|
Cooling temperature
|
15℃ - 10℃
|
|
Size
|
50*46*35cm
|
|
Net weight
|
25KG
|
|
|
Diode laser
|
LED
|
LED Advantages
|
|
Thermal damage
|
Light power
|
Similar
|
|
|
Thermal power
|
Similar
|
||
|
Chip size
|
1*10mm
|
7.5*7.5mm
|
|
|
Conclusion
|
Similar total thermal power, LED has bigger heat dissipation are and smaller heat flow density.
|
||
|
Heat transfer patch
|
Pass to the bottom and rear Average path is 1.5mm
|
Pass to the bottom Average path is just 0.2mm
|
|
|
Conclusion
|
LED has very short heat transfer path, lower thermal resistance and much higher efficiency of heat dissipation.
|
||
|
Mechanical damage
|
Stress
|
Rectangle, high length-width ratio. Under stress of thermal deformation and thermal fatigue, chips easily desoldering or broken in
pulsed working |
Square, 1:1 length-width ratio. Extra thin chip and large soldering area firmly but low stress.
|
|
Conclusion
|
Because of chip structure, LED chip’s stress is smaller than diode laser
|
||
|
Optical damage
|
Light power
|
Similar
|
|
|
Light emitting area
|
Size 0.01*0.1mm High brightness, foreign body pollution can cause light-emitting surface burned
|
Size 5*5mm Brightness is just similar to normal LED lamp of flashlight, slight dust will not being ignited to burn the lighting
surface |
|
|
|
Conclusion
|
Because of surface emitting, the brightness of LED light emitting area is much smaller than diode laser.
|
|
|
Chain damage
|
|
Not like diode laser, for LED chips, single area’s failure does not affect other emitting area
|
|
