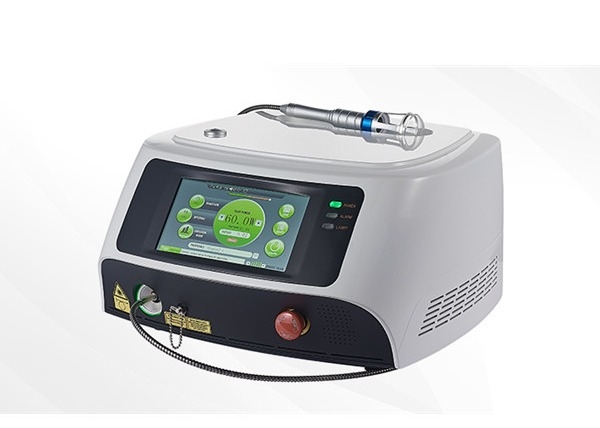

980nm Portable CE Thread Vein Removal Machine

Laser therapy is a drug-free technique to alleviate pain, reduce inflammation and accelerate recovery from a wide range of acute and chronic clinical conditions.

VASCULAR offers wavelength of 650nm/ 810nm/ 940nm/980nm/1064nm for different treatments, with wide range 0.1W- 60W of power ajustment, it is ideal for any therapy conditions.

High Quality Laser Diode Technology

Laser diodes are the heart of the laser unit and have been selected for high levels of quality, efficiency and reliability. Featuring solid state technology, they are manufactured in Germany by Lumics, Inc. which is a recognized worldwide leader for producing the highest performing diodes. This ensures superior operating life resulting in long term savings in operating costs.

Applications:

Percutaneous Laser Disc Decompression/EVLT/ENT/High power laser therapy

1. 980nm laser is the optimum absorption spectrum of Porphyrin vascularcells. Vascular cells absorb the high–energy laser of 980nm wavelength, solidification occurs, and finally dissipated.



2. To overcome the traditional laser treatment redness large area of burning the skin, professional design hand-piece, enabling the 980nm laser beam is focused onto a 0.2–0.5mm diameter range, in order to enable more focused energy to reach the target tissue,while avoiding burn the surrounding skin tissue.



3. Laser can stimulate the dermal collagen growth while vascular treatment, increase epidermal thickness and density, so that the small blood vessels are no longer exposed, at the same time, the skin’s elasticity and resistance is also significantly enhanced.



4. The Laser system based on the thermal action of the laser. The transcutaneous irradiation (with a penetration of 1 to 2 mm in the tissue)causes tissue selective absorption by hemeglobin (hemoglobin is the main target of the laser).



Specifications

Laser Type	GaAIAs Diode Laser
Wavelength	810nm/980nm	1210nm	980nm+1470nm	1940nm
Maximum Power	60w	15w	30w+15w	6w/12w
Operation Mode	CW, Single Or Repeat Pulse
Pulse Duration	10us – 3s
Repetition Rate	0.2Hz – 50KHz
Pilot Beam	Red Diode Laser of 650nm, Power<5mw
Control Mode	True Color Touch Screen (7 Inches, Resolution 600*1024)
Transmission System	Medical Fibers With SMA905 Connector
Dimensions	380(W)*430(L)*220(H)mm
Weight	11kg
